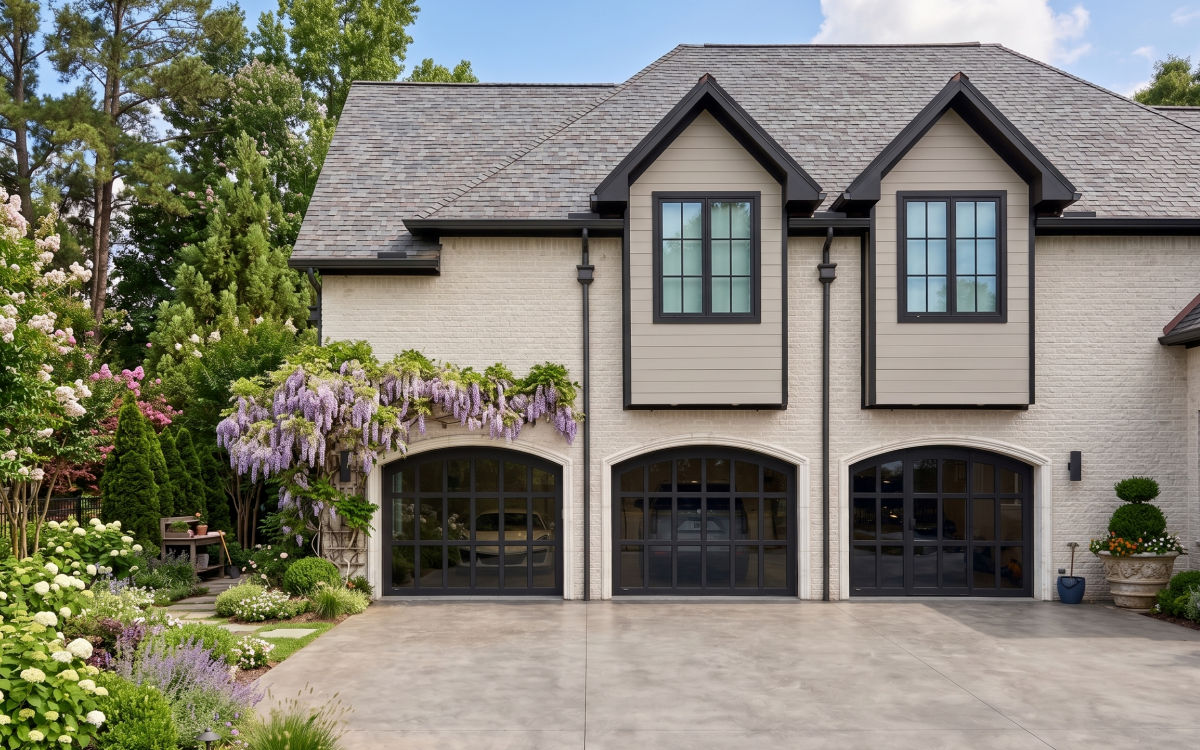

AluminArc Overhead Sectional Door

Aluminum / Glass

The AluminArc model is custom designed to match the rounded top of arched openings.

The AluminArc Model is custom designed to match the rounded top of arched openings. This model is available with or without windload and can be manufactured up to 30’-2” wide. Since 1958, ArmRLite has been consistently manufacturing the AluminArc Model and has never compromised on the quality of our doors. Because of this, ArmRLite is able to produce replacement sections for any of our welded models, regardless of purchase date. In addition, the AluminArc Model comes with an unmatched 20-year welded frame warranty except for the top section when trolley operated.

Ideal Applications
Firehouses, municipal buildings, restaurants, parking garages, residential homes, and custom applications.

Features

  • Maximum Width of 30’ 2”
  • Windload Rated
  • 20-Year Welded Frame Warranty (Except the top section when trolley operated.)

Specifications

  • Material: 6063-T6 Alloy
  • Construction Method: Heli-Arc Welding
  • Top Rail: 2 3⁄4”, 4 ½” or 7 ½”
  • Bottom Rail: 2 3⁄4”, 4 ½” or 7 ½”
  • End Stiles: 3 3⁄₈”, 4 ½” or 7 ½”
  • Center Stiles: 1 3⁄16” or 3 3⁄₈”
  • Meeting Rails: 2 3⁄4”, 3 3⁄₈” or 3 7⁄8” wide per pair
  • Frame Thickness: 1 ¾”

Custom Options

Constructed with ArmRLite’s exclusive welding system, our overhead sectional doors offer a wide range of custom options. This customization makes ArmLite the leader in luxurious overhead sectional and garage doors and ensures our customers get the ultimate entrance door solution for their home or business.

Energy Efficiency Package

Energy Efficiency Package

Matching Entrance Doors

Matching Entrance Doors

Push-Out Awning Window

Push-Out Awning Window

Slopping Bottom Section Garage Door

Sloping Bottom Section

Step Over Pass Door

Step-Over Pass Door

Windload Rated Overhead Sectional and Garage Door

Wind Load Rated

Finish Options

ArmRLite offers a wide variety of custom colors and finishes for our aluminum and glass overhead sectional and steel roll up doors. Architects, builders, designers, homeowners, and dealers/installers use these charts to make the ideal selection for their door.

Black Anodized

Black Anodized

Carnival Red II

Carnival Red II

Clear Anodized

Clear Anodized

Dark Bronze Anodized

Dark Bronze Anodized

Anodized Aluminum Finish

Anodized Aluminum Finish

Faux Wood Garage Door Finishes

Faux Wood Finish

Fluropon Finishes

Fluropon Finishes

RAL Powdercoat Garage Door Finishes

RAL Powdercoat Finishes

Glass Options

Due to our exclusive welded construction, ArmRLite’s aluminum overhead sectional doors are capable of the highest degree of customization. Many of the options listed below are exclusive to ArmRLite due to our superior construction method.

  • 1" insulated
  • 1/4" Non-Insulated
  • 1/8" Non-Insulated
  • 5/8" insulated
  • 7/16" insulated
  • Acoustical*
  • Acrylic
  • Custom
  • DSB / Annealed
  • Frosted
  • Hurricane / Impact
  • Insulated
  • Laminated
  • Polycarbonate
  • Tempered / Safety
  • Tinted

Interior Panel Options

Due to our exclusive welded construction, ArmRLite aluminum overhead sectional doors are capable of the highest degree of customization. ArmRLite offers a variety of panel options including solid, perforated, stamped, mesh, and louver designs. The panel options provided below are examples of the kinds of customized panel designs you can achieve with ArmRLite, however, more designs are available.

  • Custom Panels
  • Insulated
  • Mesh
  • Operable / Inoperable Louvers
  • Perforated
  • Solid
  • Stamped Panel Designs

AluminArc Overhead Sectional Door

When Your Entrance Matters!

When you choose ArmRLite for your home’s or commercial building’s entrance solution, you’re making a wise investment that will captivate your customers, impress your neighbors, and protect your family and employees.

Questions?

Call 1-800-554-5816 or email ArmRLite today to discuss how we can make your vision of a luxurious, durable garage door a reality!
